A-Grade LiFePO4 Cells
2.63kWh battery capacity with 80% capacity retention after 6,000 cycles.

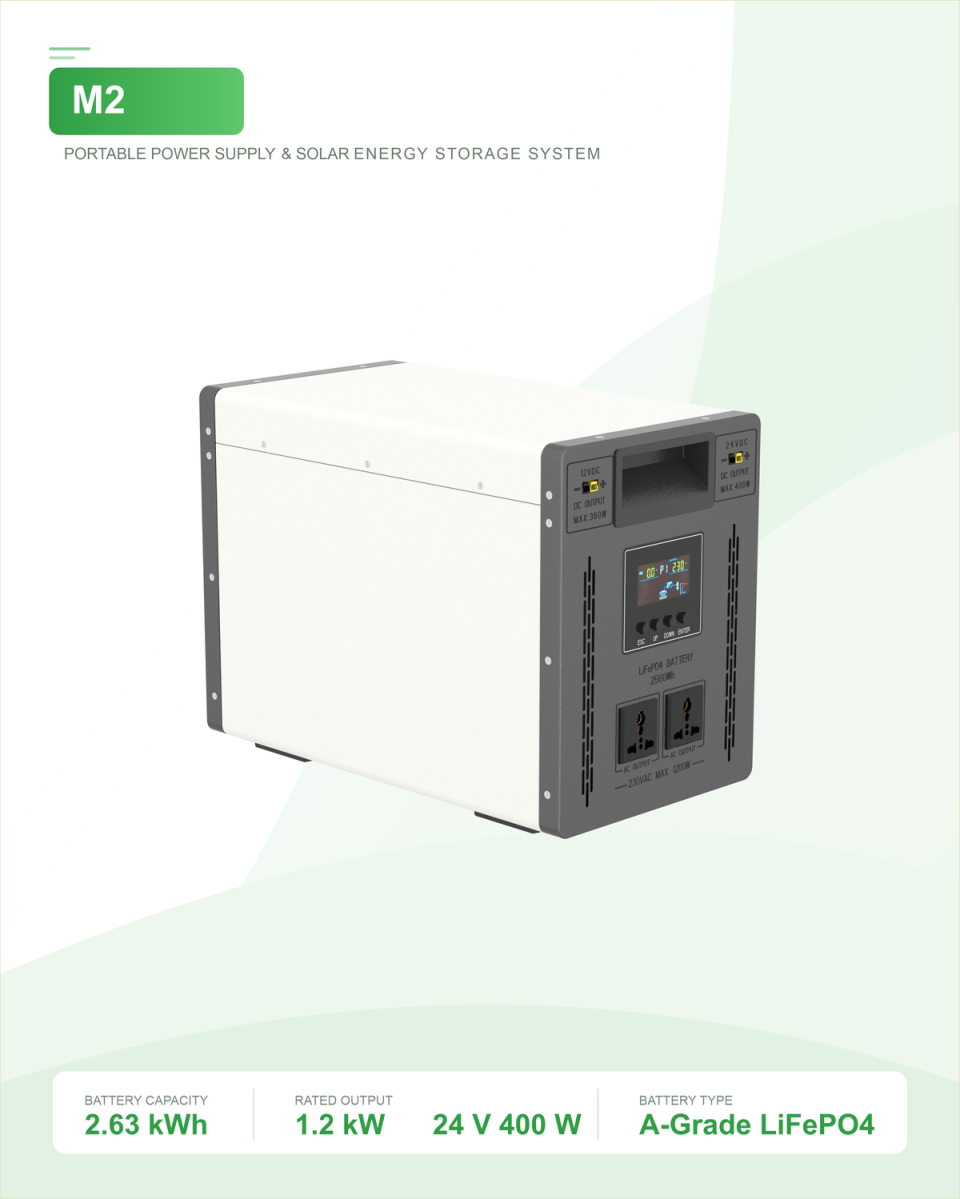

M2 Portable Power Station
Portable Solar Energy StorageM2
Compact and portable · Outdoor camping ready · Emergency backup · 2.63kWh capacity · Multiple outputs simultaneously.
- 2.63kWh energy capacity
- 1.2kW output capability
- 230VAC output voltage
- 0.8kW PV input
2.63kWh
Battery capacity
1.2kW / 1.2kVA
Rated output power
0.8kW
PV max input power
230VAC
Rated output voltage
2.63kWh
Battery capacity
1.2kW / 1.2kVA
Rated output power
0.8kW
PV max input power
230VAC
Rated output voltage
IP21
Protection rating
UN38.3 MSDS IEC 62619
Certification
Core product highlights
M2 combines a 2.63kWh LiFePO4 battery, 1.2kW pure sine-wave output, and multiple AC/DC interfaces in a compact enclosure for mobile and emergency power.
〰
Pure Sine Wave and UPS
Delivers 1.2kW / 1.2kVA AC output, 2.4kVA peak power, and 10ms UPS switchover.
☀
0.8kW Solar Input
Supports 17-115VDC MPPT input for charging from portable PV modules.
🛡
Multiple AC/DC Outputs
Supports simultaneous 230VAC, 12VDC, 24VDC, Type-C, and USB-A loads.
Application scenarios
M2 is designed for camping, vehicle travel, indoor backup, small shops, mobile work, and solar charging.
Emergency Backup
Outdoor Power
Small Appliance Backup
Small Shop Backup
Camping & Travel
Solar Charging
Common home appliances running time
Theoretical single-appliance runtime: nominal capacity divided by appliance power, excluding conversion losses and reserve energy. Actual runtime depends on usable capacity, load cycles and conditions. Confirm inverter capacity and starting loads.
Air Conditioner
(1080 W)
Approx. 2.4 h
Refrigerator
(800 W)
Approx. 3.3 h
Washing Machine
(800 W)
Approx. 3.3 h
Vacuum Cleaner
(1000 W)
Approx. 2.6 h
Microwave Oven
(500 W)
Approx. 5.3 h
Rice Cooker
(850 W)
Approx. 3.1 h
Induction Cooker
(1100 W)
Approx. 2.4 h
Cooker Hood
(350 W)
Approx. 7.5 h
Optional accessories
Companion equipment is selected separately. Interfaces and compatibility depend on the model and project configuration.
PV Modules
Pair with solar input to support daily self-consumption and off-grid supply.

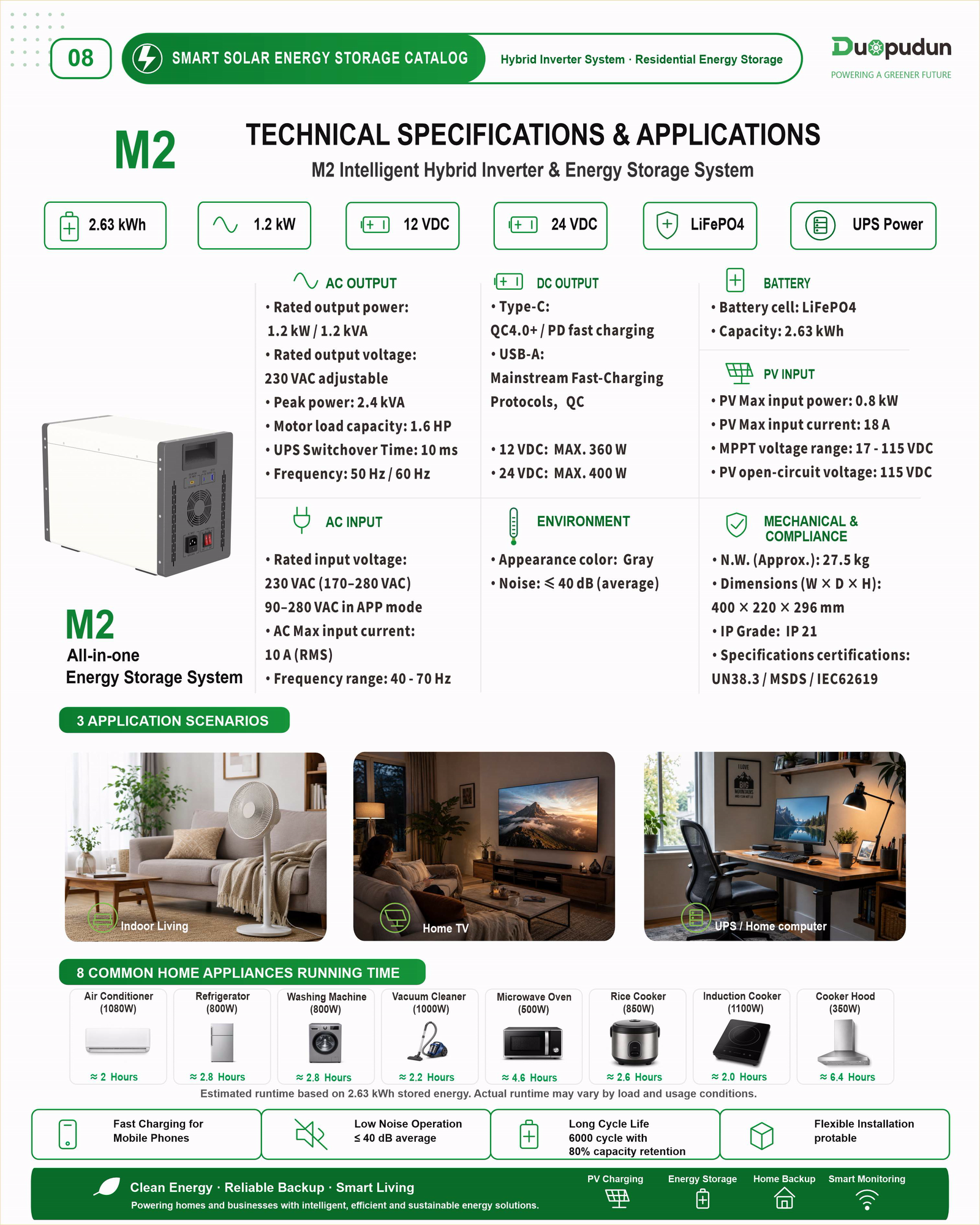

Product materials and technical overview
Review specifications, system structure and applications for your project.

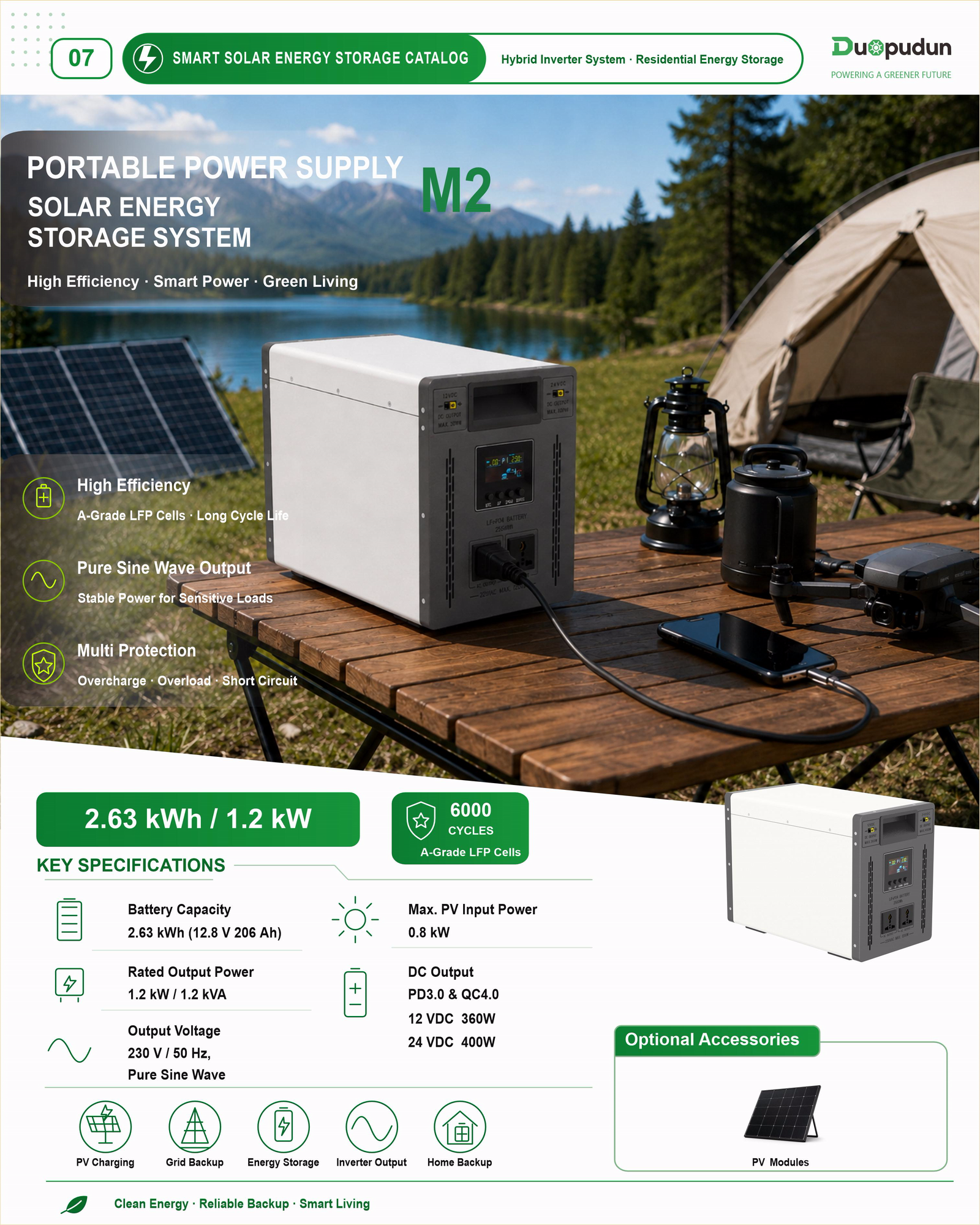

Explore the M2 product brochure
Use the M2 product materials to review core specifications, application scenarios, and optional configurations, then contact Duopudun for a suitable solution.
