Reliable battery system
Capacity and cycle-life oriented design for home and project backup needs.

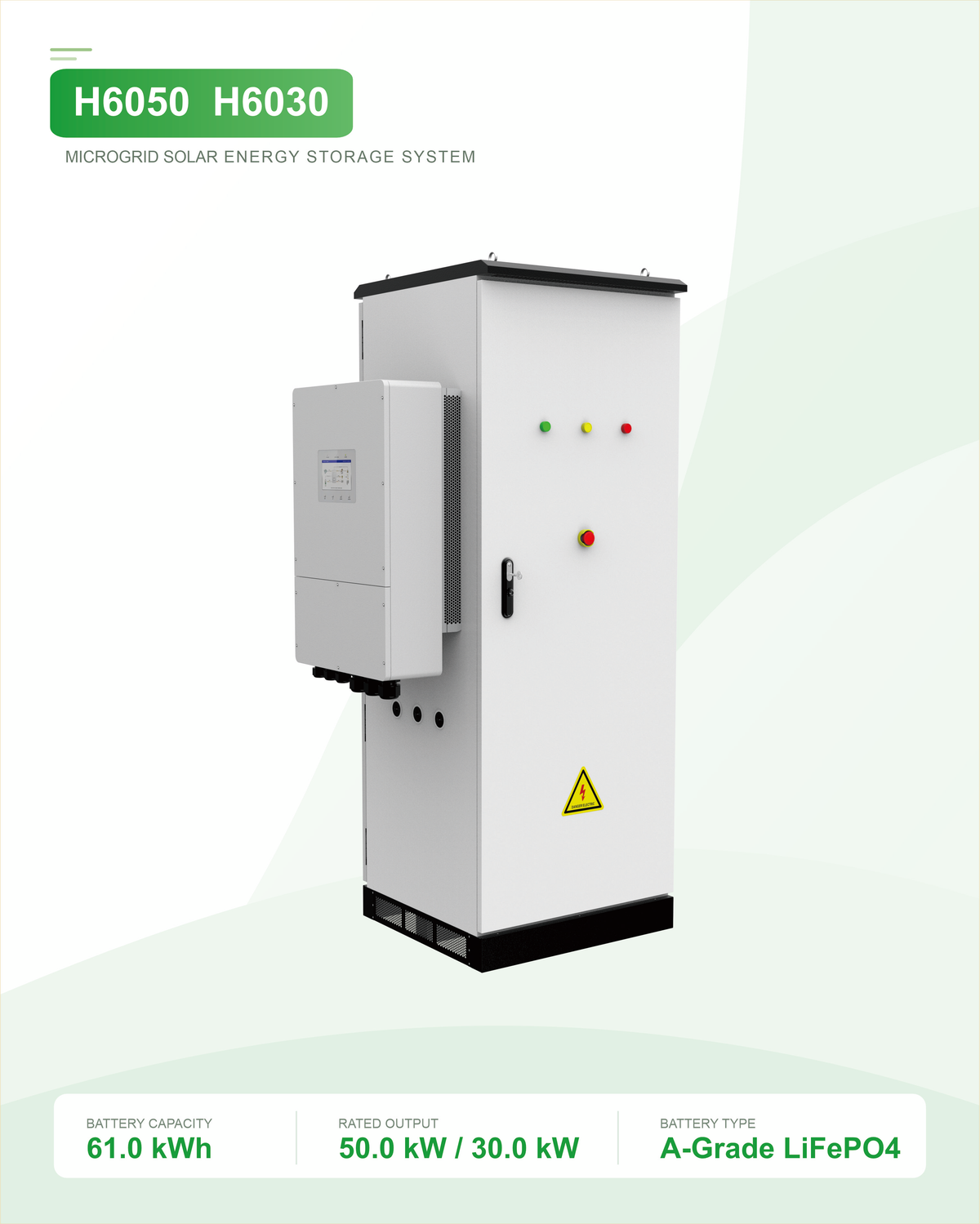

H6030 Energy Storage System
H6030 HV Cabinet Energy Storage
Longer backup time · Triple MPPT · Integrated EMS / fire suppression / HVAC · Ideal for villas/apartments and small commercial/industrial storage.
- 61.0kWh energy capacity
- 30kW output capability
- AC400V 3P voltage platform
- IP54 protection rating
61.0kWh
Battery capacity
30kW
Rated output power
AC400V 3P
Voltage platform
IP54
Protection rating
61.0kWh
Battery capacity
30kW
Rated output power
AC400V 3P
Voltage platform
IP54
Protection rating
UN38.3 MSDS IEC 62619
Certification
Project-ready
Commercial project use
Core product highlights
H6030 is built for backup power, solar energy storage, and daily energy management, combining battery storage, inverter output, and system protection in an easy-to-deploy solution.
〰
Stable output capability
Supports common appliances, lighting, communication devices, and critical loads.
☀
Solar-ready usage
Can work with solar input and local energy-use strategies to improve self-consumption.
🛡
Deployment friendly
Clear parameters help distributors, installers, and end customers evaluate configuration quickly.
Application scenarios
H6030 is designed for practical energy storage applications including backup power, solar energy use, and project-based power support.
Microgrid System
Commercial Backup
Solar Storage Project
Small Shop Backup
Farm / Industrial Park
Three-phase Load
Common home appliances running time
Theoretical single-appliance runtime: nominal capacity divided by appliance power, excluding conversion losses and reserve energy. Actual runtime depends on usable capacity, load cycles and conditions. Confirm inverter capacity and starting loads.
Air Conditioner
(1080 W)
Approx. 56 h
Refrigerator
(800 W)
Approx. 76 h
Washing Machine
(800 W)
Approx. 76 h
Vacuum Cleaner
(1000 W)
Approx. 61 h
Microwave Oven
(500 W)
Approx. 122 h
Rice Cooker
(850 W)
Approx. 72 h
Induction Cooker
(1100 W)
Approx. 55 h
Cooker Hood
(350 W)
Approx. 174 h
Optional accessories
Companion equipment is selected separately. Interfaces and compatibility depend on the model and project configuration.
PV Modules
Pair with solar input to support daily self-consumption and off-grid supply.
EV Charging Option
For projects that need home energy storage and EV charging coordination.
Backup Generator
Adds another backup source for long outages or remote sites.
Product materials and technical overview
Review specifications, system structure and applications for your project.

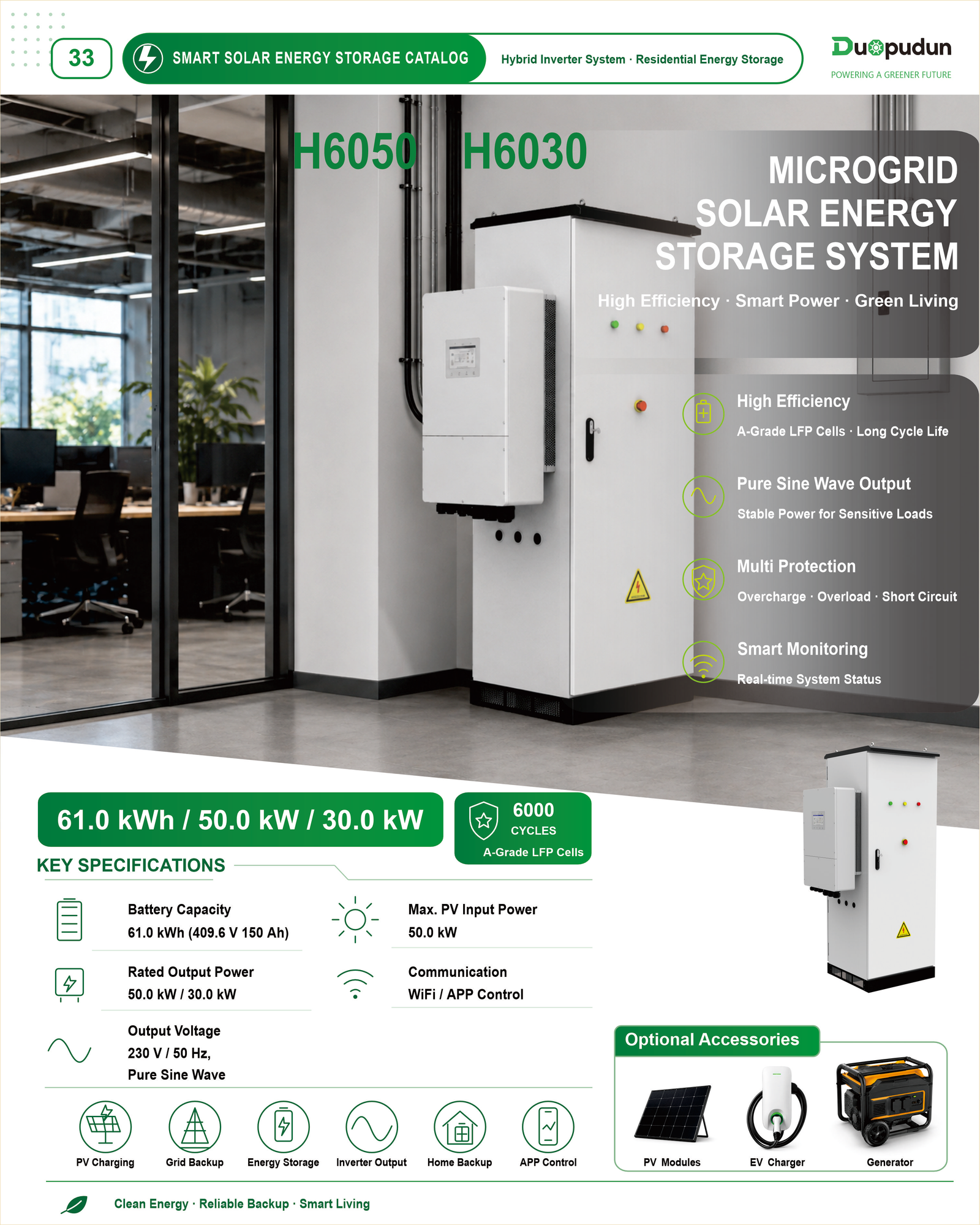

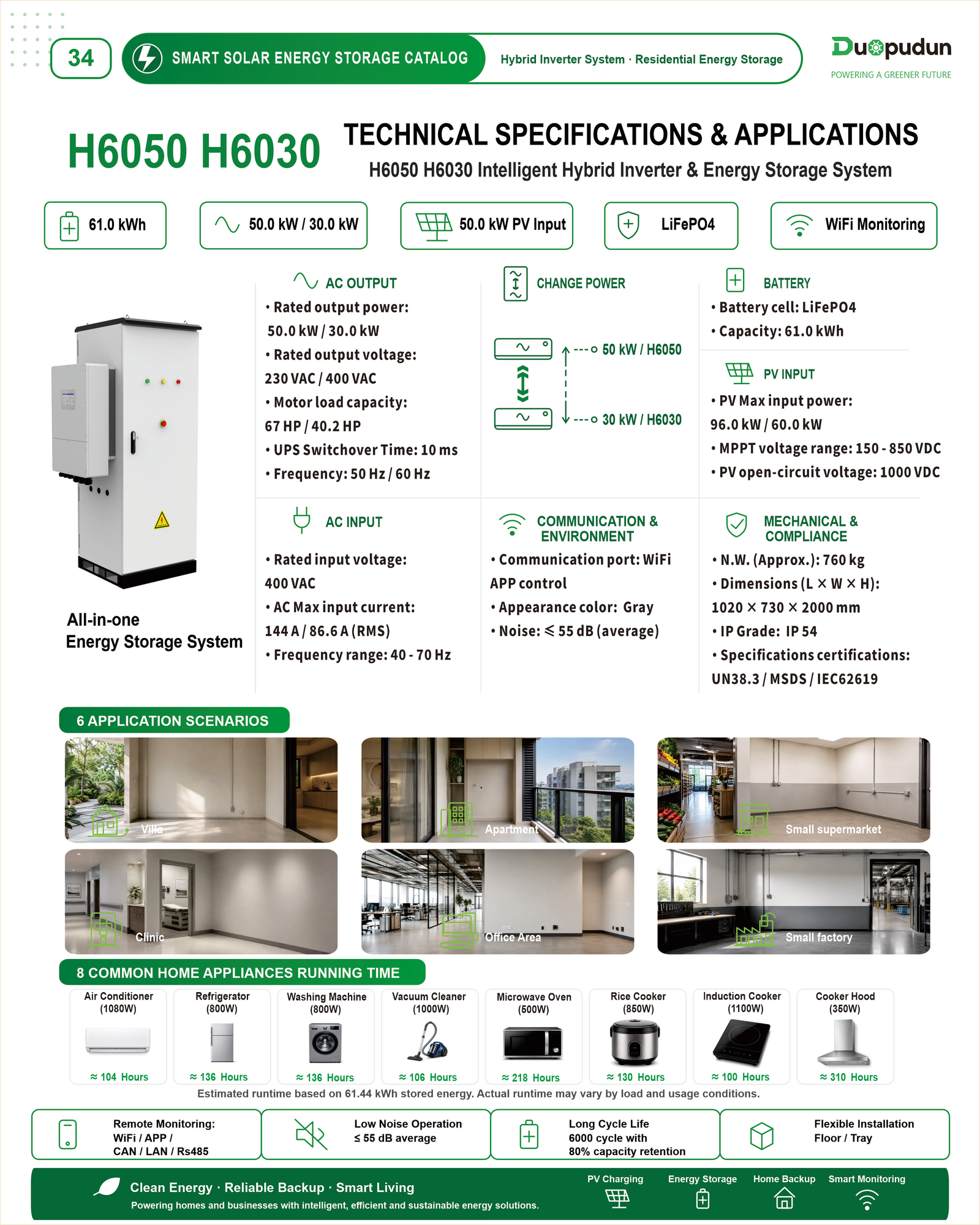

Explore the H6030 product brochure
Use the H6030 product materials to review core specifications, application scenarios, and optional configurations, then contact Duopudun for a suitable solution.
